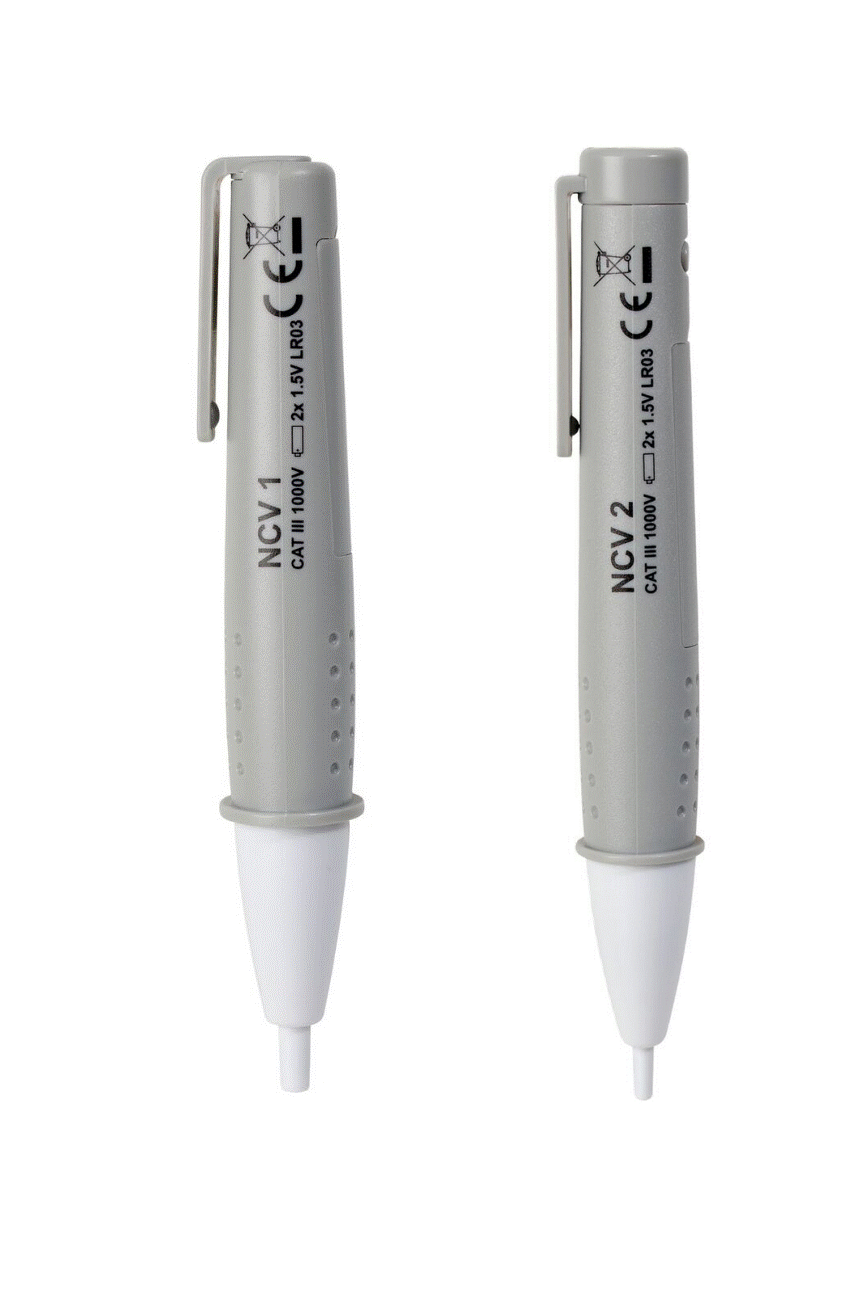

The non-contact voltage testers NCV1 and NCV 2 detect live conductors from cable connections, cable drums, sockets, switches, junction boxes etc. Because of a capacitive measuring method, they do not require current flow and can display interruptions quickly within a centimeter accuracy. The NCV2 already detects live conductors from 12V AC, including low-voltage systems.
Benefits:
Detection of AC voltages without current flow
Finding cable breaks and defective fuses
Break-proof and impact-resistant ABS plastic housing

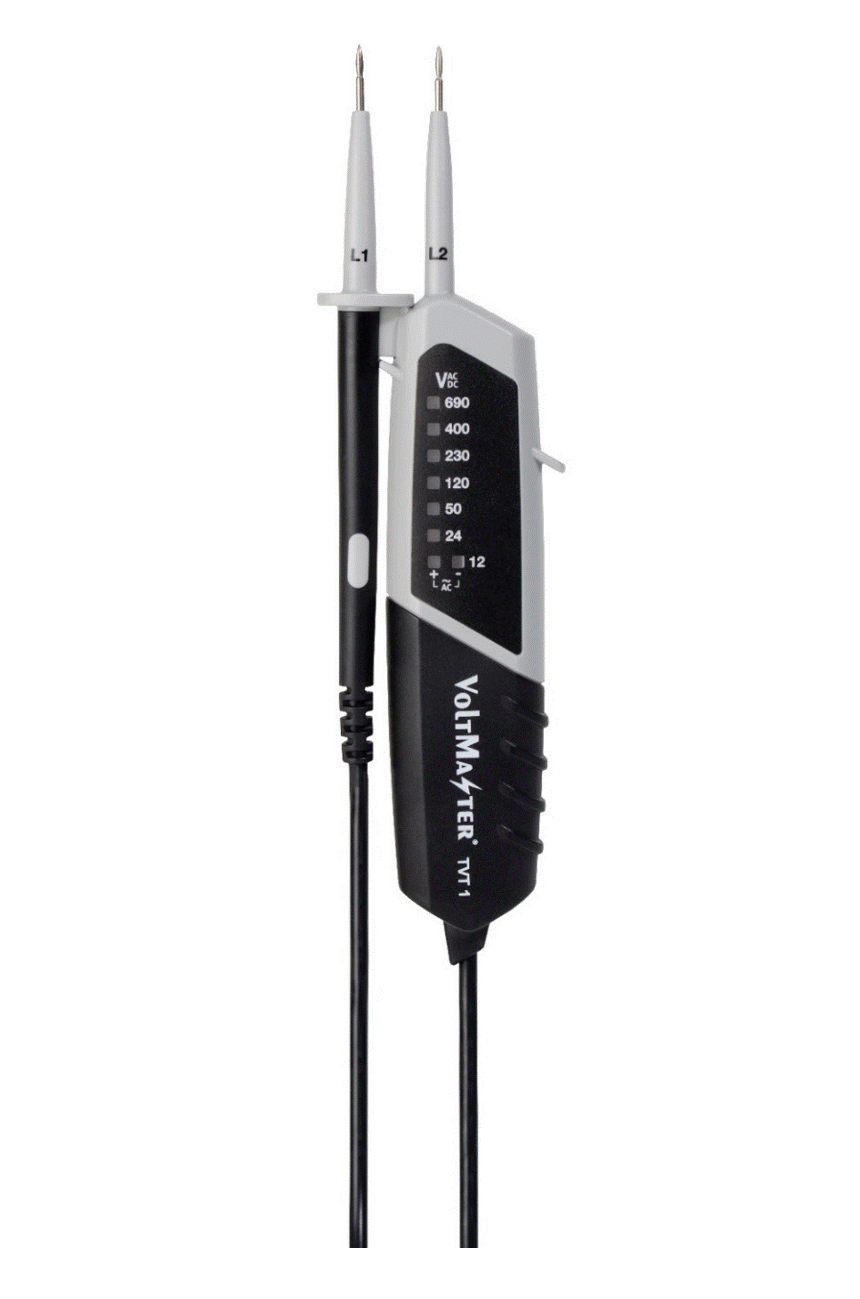

Reliable and user-friendly, that´s the Voltmaster TVT1. Because of it´s practical design, the TVT1 is ergonomically designed and is easy to use. This guarantees a long operational readiness. The voltage tester reliably shows DC and AC voltages in the range from 12 to 690 V. The electronics also enable the phase search against the protective conductor.
Benefits:
Optical display with 8 LED´s
Power is supplied via the target
Phase search against the protective conductor
Easy to use

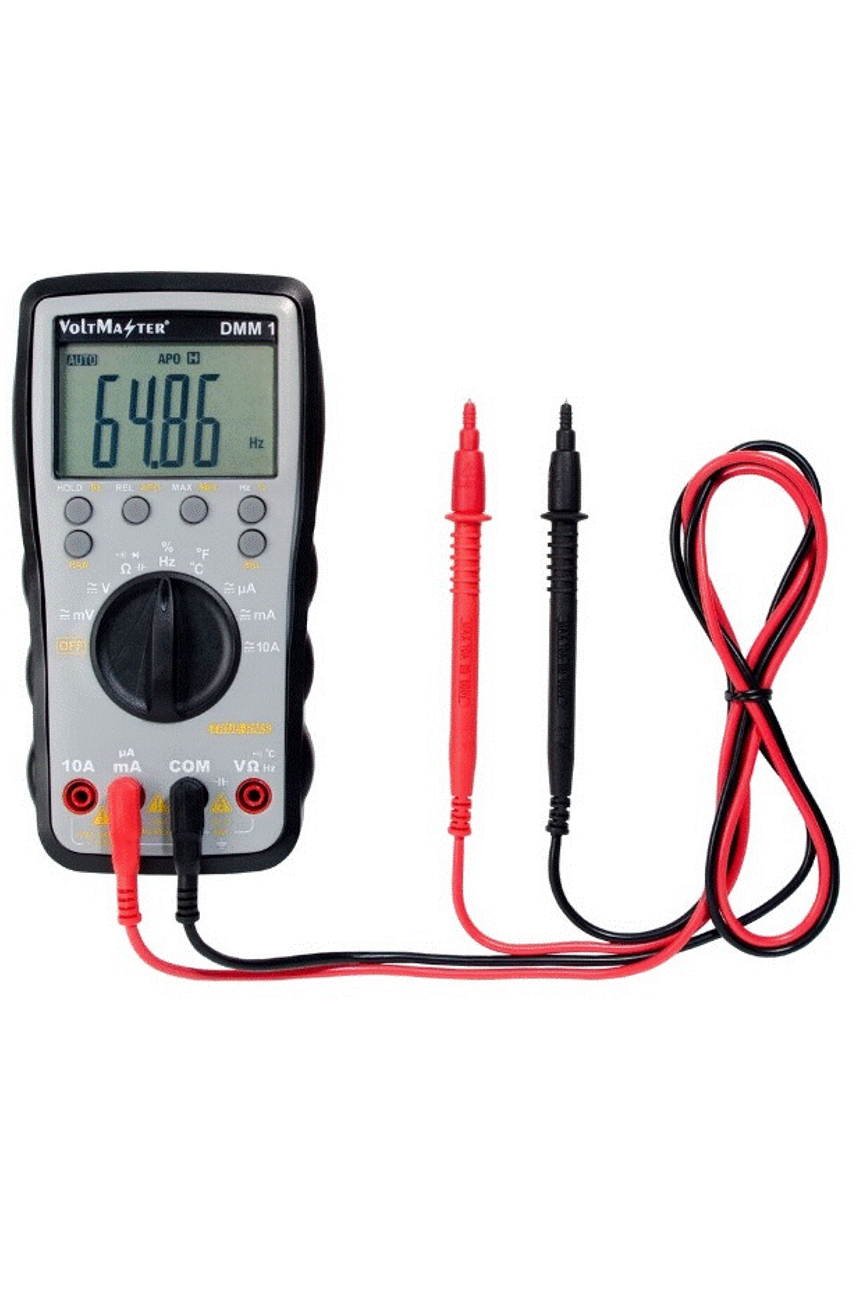

The versatile digital multimeter DMM 1 has all functions for universal use in the areas of electrical installation, service and industry. It is practical and safe to use, delivers reliably precise measurement results and has all standard functions at hand as well as the option of measuring ionization currents.
Benefits:
DC voltage & AC voltage up to 600 V
True-RMS measurement method for non-sinusoidal voltages
Continuity test by acoustic signal below 50 ohms
Auto-Power-Off

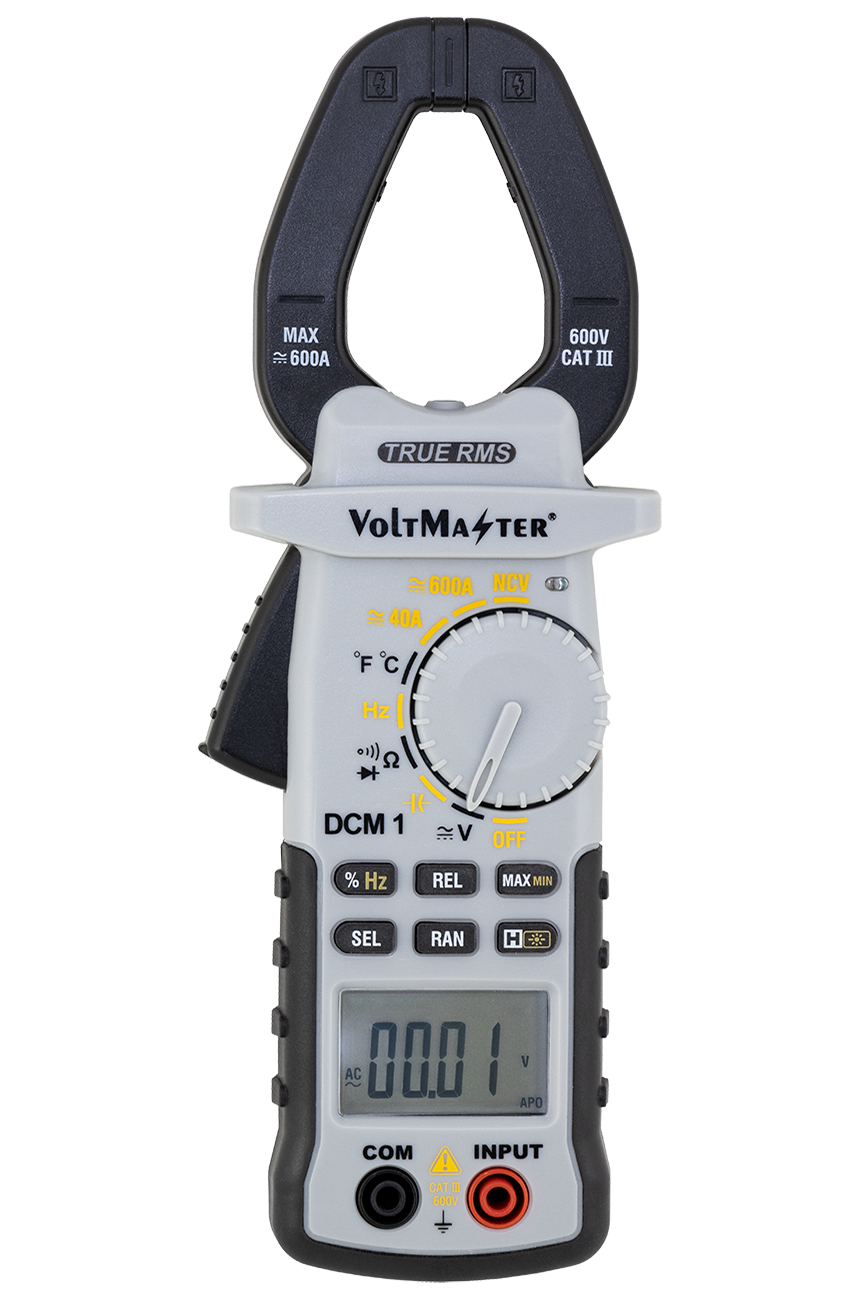

Given it´s many measuring functions and its considerable flexibility, the clamp meter DCM 1 can be used universally. Useful details such as the large LC display with backlighting, the True RMS measurement, the automatic range selection and the measuring point lighting make operation particularly practical and safe.
Benefits:
DC current up to 600 A
AC current up to 600 A TRMS
Min- or Max value measurement
AC and DC voltage up to 600 V

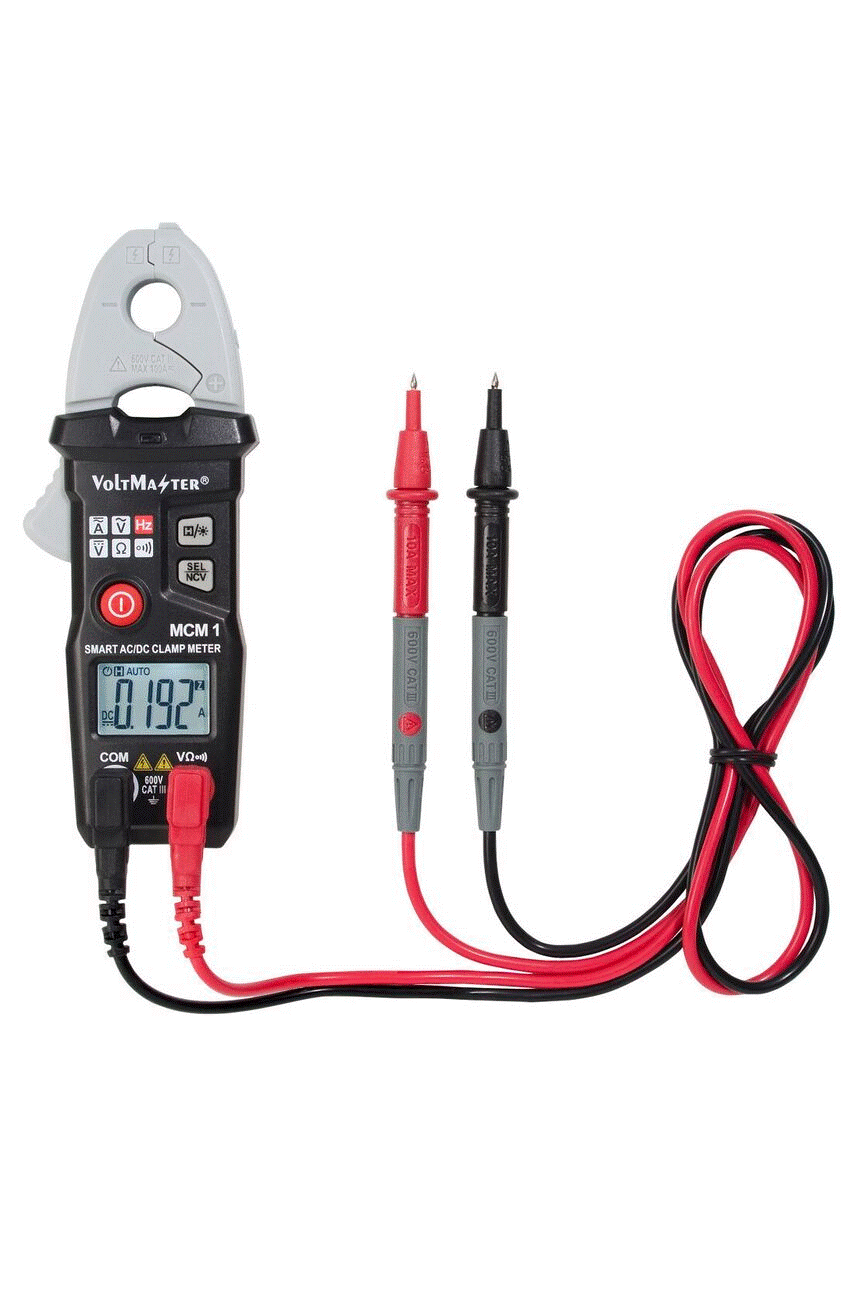

Small but effective. The digital miniature clamp meter Voltmaster MCM 1 delivers exact measurement results even in hard-to-reach places. The clamp meter can be used wherever the hand goes. In addition, despire its compact design. It convinces with useful functions such as data hold or auto-power-off.
Benefits:
DC current up to 100 A
AC current up to 200 A
AC and DC voltage up to 600 V
Frequency measurement 40 Hz up to 1 kHz

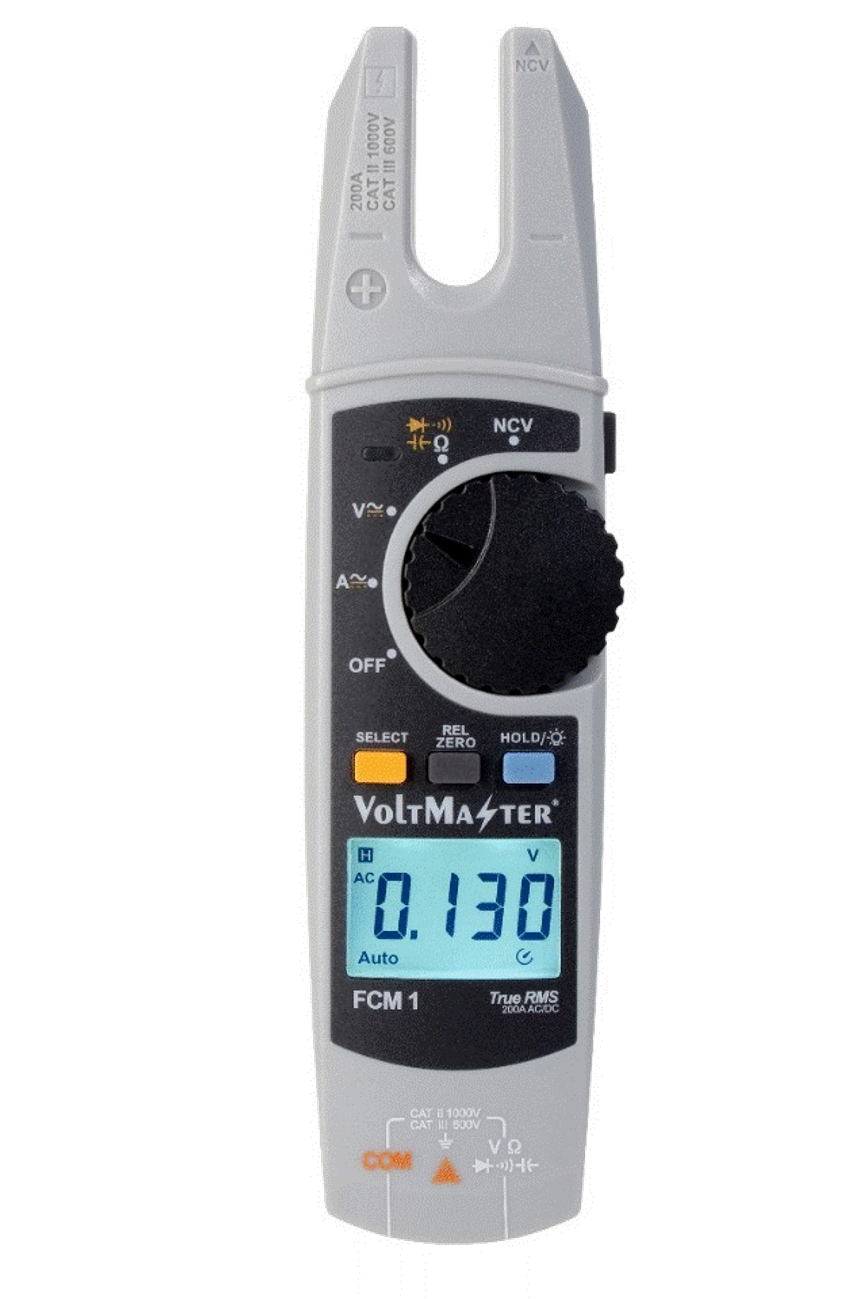

Thanks to its many measuring functions, the Voltmaster FCM1 digital fork clamp meter can be used universally. Useful details such as the large display, manual or automatic measuring range selection and the measuring point lighting make operation particularly convenient and safe.
Benefits:
Big LCD
Measuring point lighting with white LED
Non-contact voltage tester
TRMS measurement method for non-sinusoidal voltages

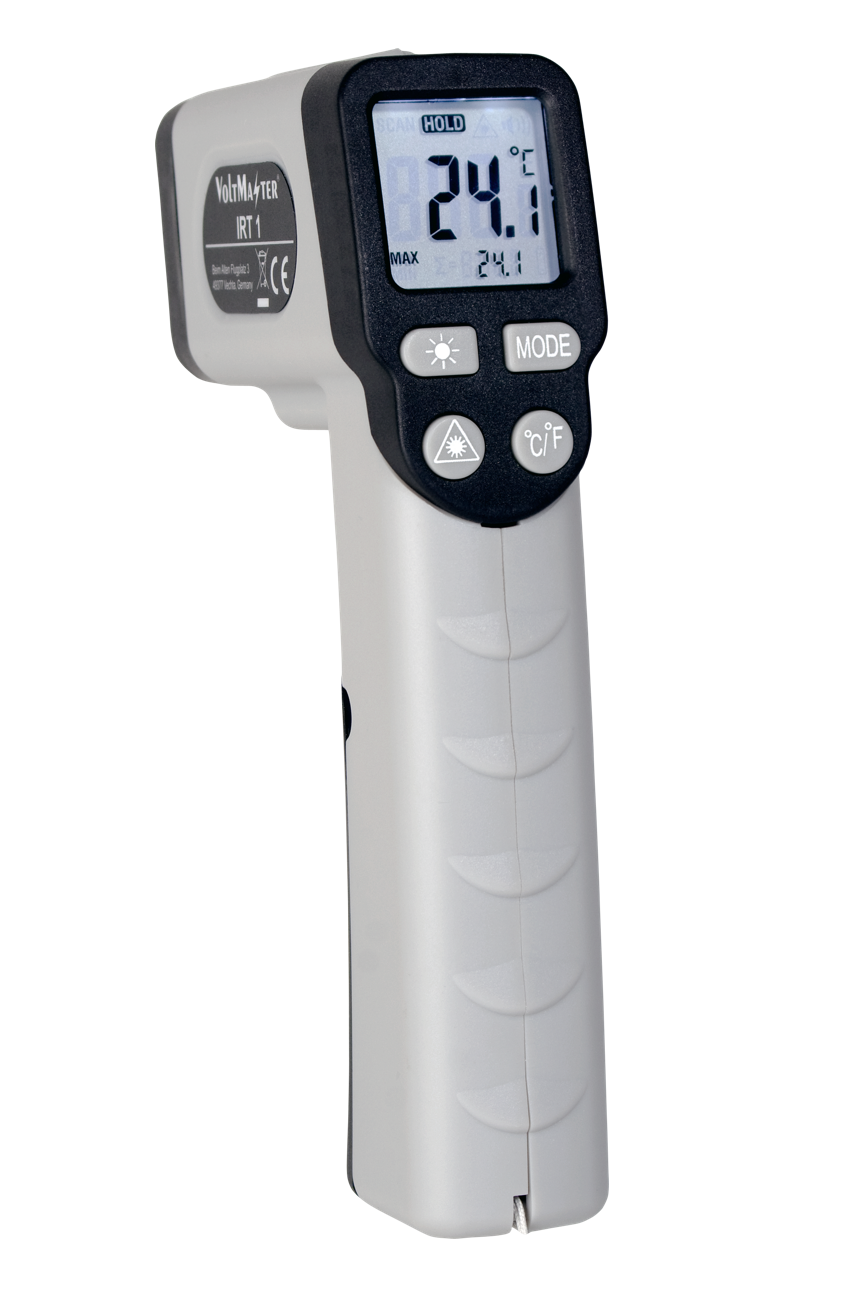

The infrarot-thermometer Voltmaster IRT1 impresses with its effortless handling. With its display lighting, min/max value display and data hold function, the IRT 1 is ideally suited for daily use in trade and industry.
Benefits:
LCD with backgroundlighting
Impact / break-proof ABS plastic
Measuring range -50 – 550 °C
Laser point can be activated
